AP CSA · Unit 9

Inheritance

Passing down the riches

Concept

What is Inheritance?

In the real world, inheritance involves passing down family wealth from one generation to the next, from grandparents to parents to their children, generally at the end of life.

In computer science, wealth doesn't mean money: wealth is data and methods. Fortunately, nobody has to die for this to happen, because computers can make copies of data and methods freely.

Through inheritance, one class can be built on top of another, gaining all of its features while adding new ones of its own.
Concept

Classes are like blueprints

You can think of a class as a blueprint for a house: it's the plan for making the house. The same blueprint can be used to build many houses. Features like color and address would be data that distinguishes one instance from another.

Using the same blueprint saves a lot of money; architects are expensive. But what if you wanted to change the blueprint slightly: add a bigger garage, or change the type of windows?

Would you start over from scratch and create a completely new blueprint?
Concept

Extending the plan

Of course you wouldn't throw out the whole plan for small changes. You would simply modify that part of the plan: design the new garage and override the original garage design, but keep all the rest of the features: the kitchen, bathrooms, and bedrooms stay exactly as they were. And if someone else later wanted a house with a larger garage like yours, they could use your modified blueprint.

This is what inheritance is all about: extending the concept represented by a class by adding or changing features, but keeping all the rest of the existing features.
Recall

You've already experienced this

You've already experienced inheritance in Java.

Don't remember? Think waaaay back…

Recall

Remember Karl?

Karl the pixel-art zombie

Everybody's favorite zombie…

Review

Karl is a Zombie

Zombie is a Java class with just a few capabilities: moving forward and turning right. That was enough for Karl to solve many ZombieLand puzzles. But when Karl evolved into an UltraZombie, he gained new skills, like turning left or facing any direction.

Those new skills were added to the ones that Zombies already had. Becoming an UltraZombie extended the Zombie's capabilities. UltraZombies can still move forward and turn right, and they also know how to turn left and face particular directions.

When you taught Karl to solve the ZombieLand puzzles, you also extended his capabilities by giving him a new plan: any methods you wrote in MyZombie were new skills added on top of everything he already had.

Review

The class diagram and extends

Greenfoot is designed around this kind of inheritance. The class diagram on the right shows each class as a box, connected by arrows that mean IS-A or extends. An UltraZombie IS-A Zombie; a MyZombie IS-A UltraZombie; and all of them extend the Actor class. So each IS-A Actor.

The magic that makes this all work is the very first line of the class declaration:

public class MyZombie extends UltraZombie

The extends keyword means MyZombie has all the power of an UltraZombie, and then some. Every method Karl called was inherited through this chain: UltraZombie → Zombie → Actor.

Greenfoot class diagram: Actor → Zombie → UltraZombie → MyZombie
Example

A new example: Rectangles & Squares

Let's look at a simple geometry example composed of three classes: Main, Rectangle, and Square. The key relationship is that Square extends Rectangle.

Rectangle includes several methods: getWidth(), getHeight(), getArea(), getPerimeter(), and getName().

Square relies on those methods and adds one of its own: getSideLength(). It also explicitly uses the super keyword to call Rectangle's constructor, passing the same value for both width and height.

Open this code. Look it over and be ready to discuss what methods you think you can call on a Square object.
Open Simple Shapes →
Code Inspection

Which methods can you call on s?

Refer to the Simple Shapes code you opened in the previous slide. After Square s = new Square(5); is executed, which of the following methods can you call on s? Select all that apply.

▸ Which method(s) can you call on s?

  • A. s.getSideLength() : defined in Square
  • B. s.getWidth() : inherited from Rectangle
  • C. s.getHeight() : inherited from Rectangle
  • D. s.getPerimeter() : inherited from Rectangle
  • E. s.getArea() : inherited from Rectangle
  • F. s.getName() : inherited from Rectangle
Background

All classes extend Object

All code in Java has to be part of a class, and every class extends exactly one other class: no more, no less. If no extends clause is written, Java automatically extends the Object class. Object is the ultimate ancestor of every class in Java; all classes descend from it, building upon each other through the class hierarchy.

This means every Java object automatically inherits the features provided by Object, for example, the toString() method. That's why you can print any object and get something like MyClass@4F3C56 even when you've never written a toString() method yourself. Your class inherited the toString() method from Object.

The chain always ends at Object. When Java searches for a method, it walks up this chain: subclass → superclass → … → Object, until it finds the method or gives up with an error.
Rules

Implications of Inheritance

When you extend a class, your subclass gains all of the behavior (methods) and data (instance variables) of the superclass and all of its ancestors. However, subclasses only have direct access to public or protected members; they cannot reach into the private members of a parent class.

Subclasses can add new fields and methods, and they can override existing methods to change how they work. What they cannot do is remove fields or methods, or change a public method into a private one; that would be like removing a feature entirely.

When a subclass is instantiated, its constructor can set up its own instance variables, but it cannot directly initialize private members from a parent class; those must be handled through the parent's constructor or setter methods.

Constructors

Constructors are a special case

Constructors are not inherited. If your subclass needs a constructor, you write it yourself. If you do not write one, Java automatically starts by calling the parent's no-argument constructor (if one exists).

Use super(...) when you want a specific parent constructor, like super(side, side) in Square's constructor. That call must be the first line in your constructor. Leave it out, and Java will try super() for you.

You cannot use both super() and this() in one constructor. Pick one, because only one call can go first.
Overriding

Overriding Methods

Any method that is not final can be overridden. To override correctly, the subclass method must match the parent's signature exactly: same name, same parameter types.

If the parameters are different, that is overloading, not overriding. Then you have a new method instead of replacing the inherited one.

Quick test: same signature means override. Different signature means overload.
Overriding

Overriding Methods · Continued

Put @Override above overridden methods. It lets the compiler catch mistakes if the signature does not actually match.

Overriding replaces inherited behavior. If you only want to add to the parent behavior, call super.methodName(...) inside your override, then run your subclass logic. Unlike super(...) in a constructor, this call does not have to be first.

Overriding

When Inheritance Isn't Enough

Look at the Square and Rectangle classes. Can you spot any problem?

JAVA
Square s = new Square();

s.setWidth(5);
s.setHeight(10);
Is this still a square?
Overriding

What Is Wrong? Who Is Responsible?

  • What rule did we just break?
  • Who is responsible for enforcing that rule?
  • Should we trust Rectangle's behavior?
Sometimes inherited behavior breaks our rules. That's where overriding comes in.
Overriding

Business Logic

This is also where business logic comes in. Business logic is the part of your code that encodes real-world rules and determines how data is created, stored, and changed. It ensures that the specific requirements of the problem the software is solving, such as tax calculations, discount eligibility, or banking interest, are handled correctly.

In this simple shapes project, we've violated what should be an invariant: the width and height of a Square must always be the same. The Square class inherited setWidth and setHeight from Rectangle, and that inherited behavior breaks the rule a square must follow.

Overriding

Enforcing the Invariant

Main.java
s.setWidth(5);
s.setHeight(10);

What should happen here? What should always be true about a square?

Overriding

Enforcing the Invariant

Square.java
@Override
public void setWidth(int w) {
    super.setWidth(w);
    super.setHeight(w);
}

Why not set width and height directly?

Those fields are private in Rectangle, so Square can't reach them. Using super.setWidth and super.setHeight is the only way to change them, and overriding those setters is how we enforce our invariant.

Overriding

Enforcing the Invariant

Square.java
@Override
public void setWidth(int w) {
    super.setWidth(w);
    super.setHeight(w);
}

Why do we need super.?

What would happen if we didn't use it? We'd be calling setWidth inside of setWidth, which would call setWidth again, which would call it again...

That's recursion: a method that calls itself. Without super., we'd loop forever until the program crashes.
super

The super keyword

super is used to access a field or method from the superclass that has been overridden in the subclass. Think of how you use this to access fields that share a name with a constructor parameter. The Square class uses super to call Rectangle's constructor, passing the same value for both width and height.

You can also use super.methodName(…) to invoke the parent's version of a method you've overridden. This is the mechanism behind partial overriding: run the parent's logic first, then your own.

Java does not allow nested supers. Calling super.super.method() is a compile error; you can only reach one level up at a time.
Abstract

Abstract Classes

An abstract class is used to describe some behaviors of a type, but it cannot be instantiated; you can't call new Shape(). This is often used for a generic type where some behaviors are common to all subclasses but there's no sensible "generic" implementation. The shared behaviors are defined as methods in the abstract class and inherited by every subclass.

Abstract classes can also contain abstract methods: a method signature with no body at all. Subclasses must provide the actual implementation. The rule is: if a method is marked abstract, its enclosing class must also be declared abstract. For example, all shapes have an area, but the formula is different for every shape, so getArea() is abstract in the Shape class and implemented differently in Circle, Rectangle, and so on.

Example

The Shapes Framework

Here is a family of classes built on the abstract Shape class. The base Shape class declares that all shapes have a name and an area. Every shape that descends from it adds the features unique to that shape: a Rectangle adds width and height; a Circle adds a radius; a Square extends Rectangle further.

Open the Shapes code in a new browser tab.
Open Shapes Framework →
Polymorphism

Inheritance and Assignment

One feature that inheritance unlocks is assignment to a superclass type. You've already seen this in action: List<T> myList = new ArrayList<>(); works because ArrayList extends List.

In Greenfoot, Actor player = new Ghost(); works because Ghost extends Actor.

In the Shapes code, the same idea appears with

  • Shape rectangle = new Rectangle(10, 20);
  • Shape circle = new Circle(10);
  • Shape square = new Square(6);
Polymorphism

Reference Type Limits Access

This kind of assignment also limits what you can do. For example, rectangle is declared as type Shape, so Java lets it call getName() and getArea(), but not getHeight().

That is why this line in the Shapes.main() method is commented out:
//System.out.println(rectangle.getHeight());
getHeight() belongs to Rectangle, not Shape.

Key rule for now: the declared type controls what methods you are allowed to call.
Casting

Assignment goes one direction

Assignment only works from subclass to superclass: not the other way around. You can store a Square in a Rectangle variable because all squares are rectangles. But you cannot store a Rectangle in a Square variable; not all rectangles are squares, and the compiler will refuse to allow it.

Casting

Casting Checks at Runtime

If you know a superclass variable actually holds a subclass object, you can cast it, for example: (Square) s. This tells Java to treat s as a Square.

If you are wrong and the object is really just a Rectangle, Java throws a ClassCastException at runtime.

The compiler checks the declared type at compile time. The JVM checks the actual type at runtime.
Code Inspection

What can you do with s?

Refer to the Shapes Framework code open in your browser. After Shape s = new Rectangle(15);, which of the following can you do with s? Select all that apply.

▸ Evaluate each option first, then reveal.

  • A. s.getHeight() → Rectangle method: not visible from Shape
  • B. s.getWidth() → Rectangle method: not visible from Shape
  • C. s.toString() → inherited from Object
  • D. s.setName("Rect") → defined in Shape
  • E. s.getName() → defined in Shape
  • F. s.getArea() → abstract method in Shape
  • G. s.getSideLength() → Square method: not visible from Shape
Polymorphism

Polymorphism

Poly means many, and morph means form. Polymorphism is what happens when a parent-type variable can refer to many different subclass objects.

The important idea is this: you can call the same method on the same parent-type variable, but get different behavior depending on what object is actually stored there.

Same method call but a different result. That is the payoff of inheritance plus overriding.

But what does that mean?? And why whould you want to do that??!

Polymorphism

The Animal Project

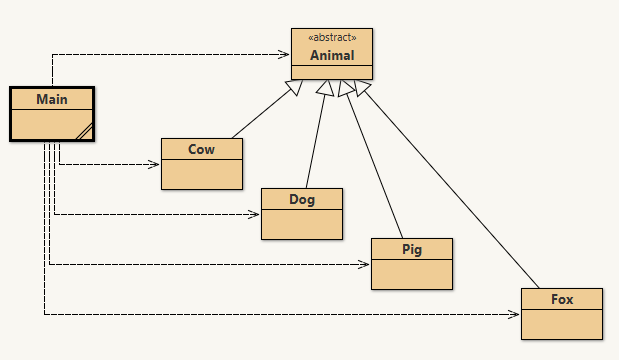

In the Animal project, Animal has an abstract talk() method, and each subclass implements it differently. Cow, Dog, Pig, and Fox all respond in their own way.

In main, the program builds a list of all the animals, then loops through the list asking each item for its name and to talk(). Even though each item is stored as type Animal, Java still runs the correct subclass version of talk().

Practice

Let's work through a program

🍕

We'll build a Pizza ordering system together: live coding using inheritance. Join the class session below for the screen share. Open the assignment:
You had me at Pizza()

Let's code! →
Interfaces

Interfaces

You've seen interfaces before in Java. They are like abstract classes that are entirely abstract: they specify method signatures but contain no code at all. Where classes use the extends keyword to extend superclasses, classes implement interfaces.

A key difference from class inheritance: a class can only extend one other class, but it can implement any number of interfaces. Any class that implements an interface must provide a concrete implementation for every method in that interface; otherwise the class itself must be declared abstract.

Interfaces are also types, which is why you've been writing List<String> myList = new ArrayList<>(); all along. List is an interface, and ArrayList is a class that implements it.

Interfaces

A common interface: Comparable

One interface used throughout the Java library is Comparable<T>. It defines a single method: compareTo(T other), which determines the natural ordering of two objects. A class that implements Comparable promises that its objects can be compared and ranked relative to each other.

The convention is: return a negative number if this comes before other, zero if they are equal, and a positive number if this comes after. A common shortcut for numbers is to simply subtract: return this.value - other.value;. Once a class implements Comparable, it works automatically with Collections.sort() and Arrays.sort().

Read the Comparable interface source →
Design

Diagramming class hierarchies

Programs often contain many classes and interfaces. To make sense of the structure, developers draw class diagrams that show which class relates to which; you've seen simplified versions of these in BlueJ.

The diagrams we've seen so far mostly show HAS-A relationships, sometimes called composition. For example, a Forest HAS-A Tree, and a FishTank HAS-A Fish. The tree also HAS-A Triangle and Rectangle for drawing itself, but it is not a descendant of either. HAS-A relationships are shown with dashed lines and open arrows.

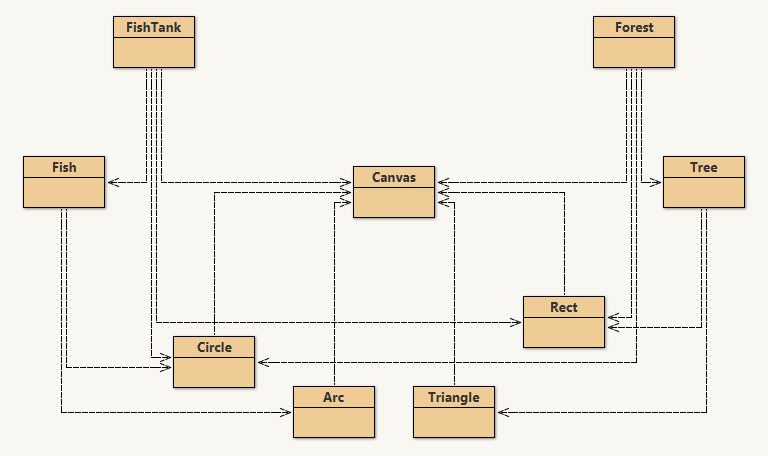

Class diagram showing HAS-A relationships: FishTank/Fish/Canvas and Forest/Tree/Rect/Circle/Arc/Triangle
Design

IS-A vs HAS-A relationships

IS-A relationships, true inheritance, are shown with solid arrows and open arrowheads. In the diagram, you can see the Main class using all of the shapes, and the shapes' own inheritance hierarchy is shown to the right.

Notice that Shape is labeled <<abstract>>; you cannot instantiate it directly. Ellipse extends Shape, and Circle extends Ellipse. Rectangle extends Shape, and Square extends Rectangle. Interfaces, when shown, use the <<interface>> label and the same notation.

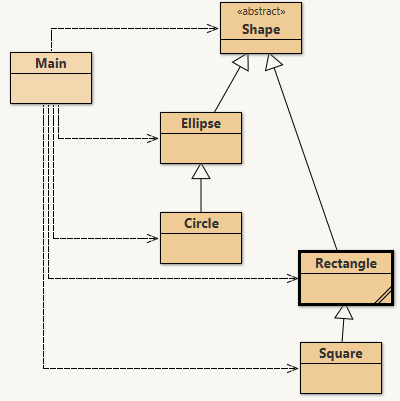

IS-A class diagram: abstract Shape extended by Ellipse (→ Circle) and Rectangle (→ Square), with Main using all
The dashed arrows from Main to the shapes show that Main HAS-A (uses) each of those shapes; it is not a descendant of any of them.
AP CSA · Unit 9

That's Inheritance

extends: IS-A; the subclass gains everything the superclass has

super: the bridge back to the parent's implementation

abstract: define the concept; let subclasses define the details

implements: a promise to fulfill an interface's contract

Polymorphism: same call, many possible behaviors
